40mm Rubber Playground Tiles — Maximum Impact Protection for High-Level Play Equipment

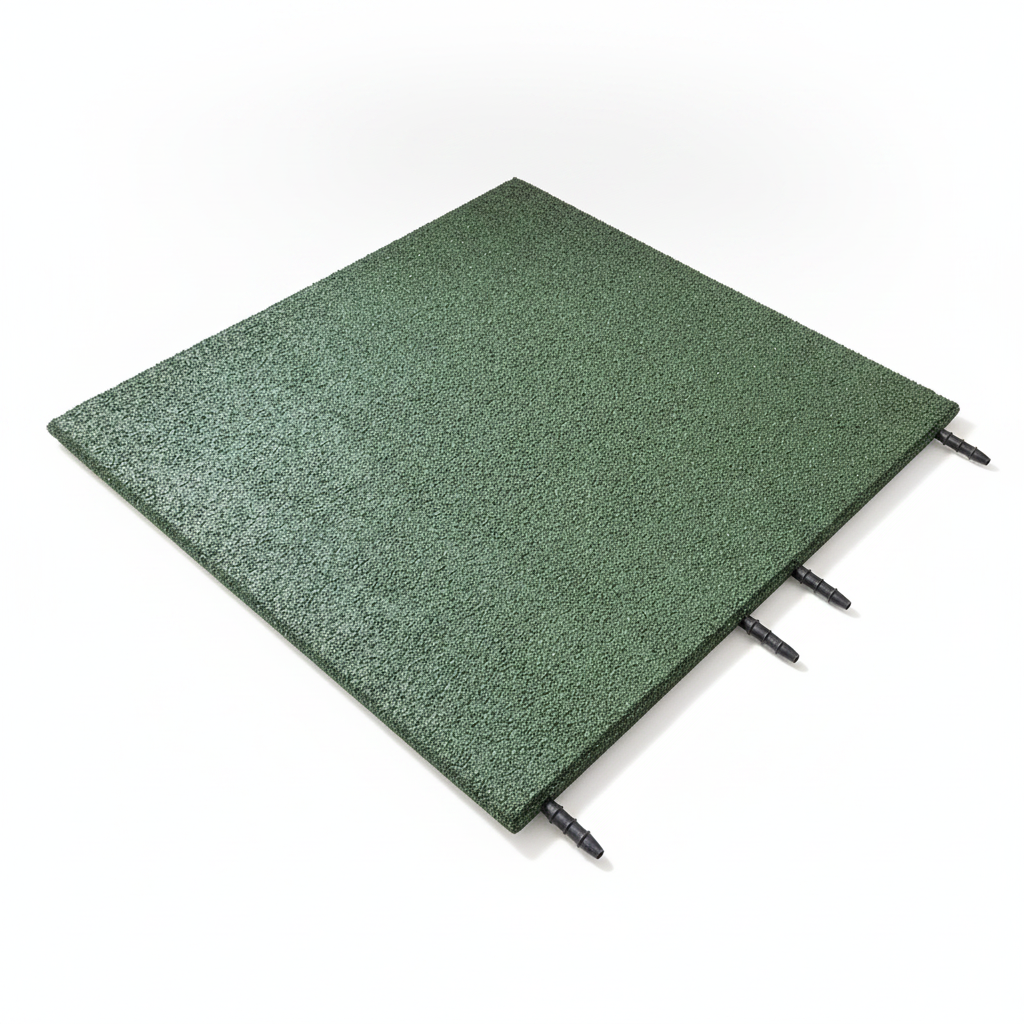

When equipment gets taller, the stakes get higher. These 500mm × 500mm × 40mm recycled rubber playground tiles are engineered for critical fall heights up to 2.0m — making them the specification-grade choice for adventure play areas, high climbing structures, and public park installations where maximum impact attenuation is required. EN1177 and EN1176-1 tested, interlocking dowel system included, and built to perform in all UK weather conditions year-round.

Product Specifications

Choosing the Right Thickness — Why 40mm?

EN1177 mandates the minimum tile thickness based on the critical fall height of the tallest accessible point on your equipment. The thicker the tile, the greater the energy absorption on impact:

If your equipment has any accessible point above 1.6m — whether a climbing wall top, a high platform, or a large slide exit — 40mm is the correct specification. For equipment exceeding 2.0m CFH, please contact us for bespoke surfacing advice.

Step-by-Step Installation Guide

1. Prepare the substrate — Install onto concrete, tarmac, or compacted hardcore. The base must be firm, level, clean and free of loose material. Allow a 1–2% fall for drainage.
2. Dry-lay first — Arrange tiles without connecting to finalise your layout and plan perimeter cuts before committing.

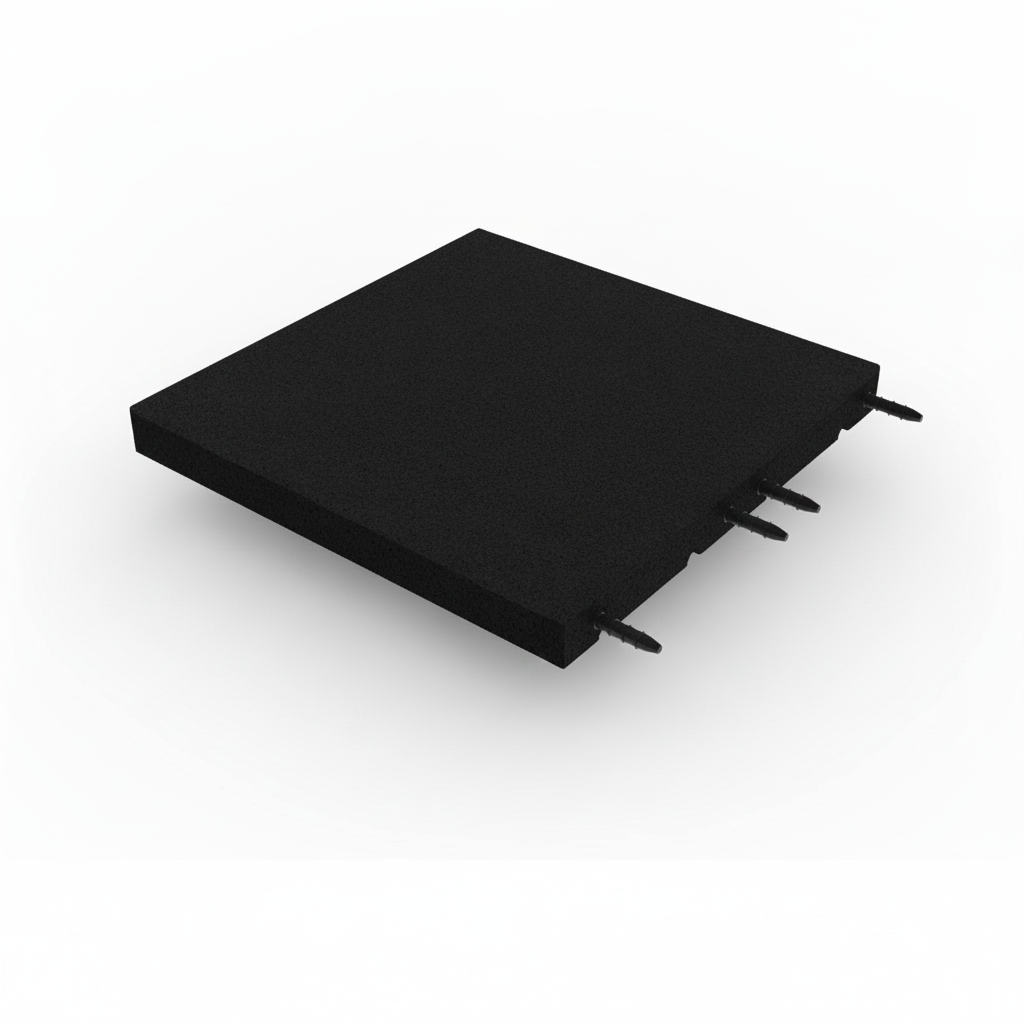

3. Connect with dowels — Insert the included plastic dowels into the connector holes along each tile edge. Push firmly until flush — no adhesive, no specialist tools required.
4. Work row by row — Connect tiles progressively, working from one fixed corner outward to maintain alignment.
5. Cut perimeter tiles — Use a sharp Stanley knife (score and snap) or jigsaw for clean straight or curved cuts.
6. Finish edges — Ramped edge and corner pieces are available separately for a professional trip-free perimeter.

Where 40mm Tiles Are Specified

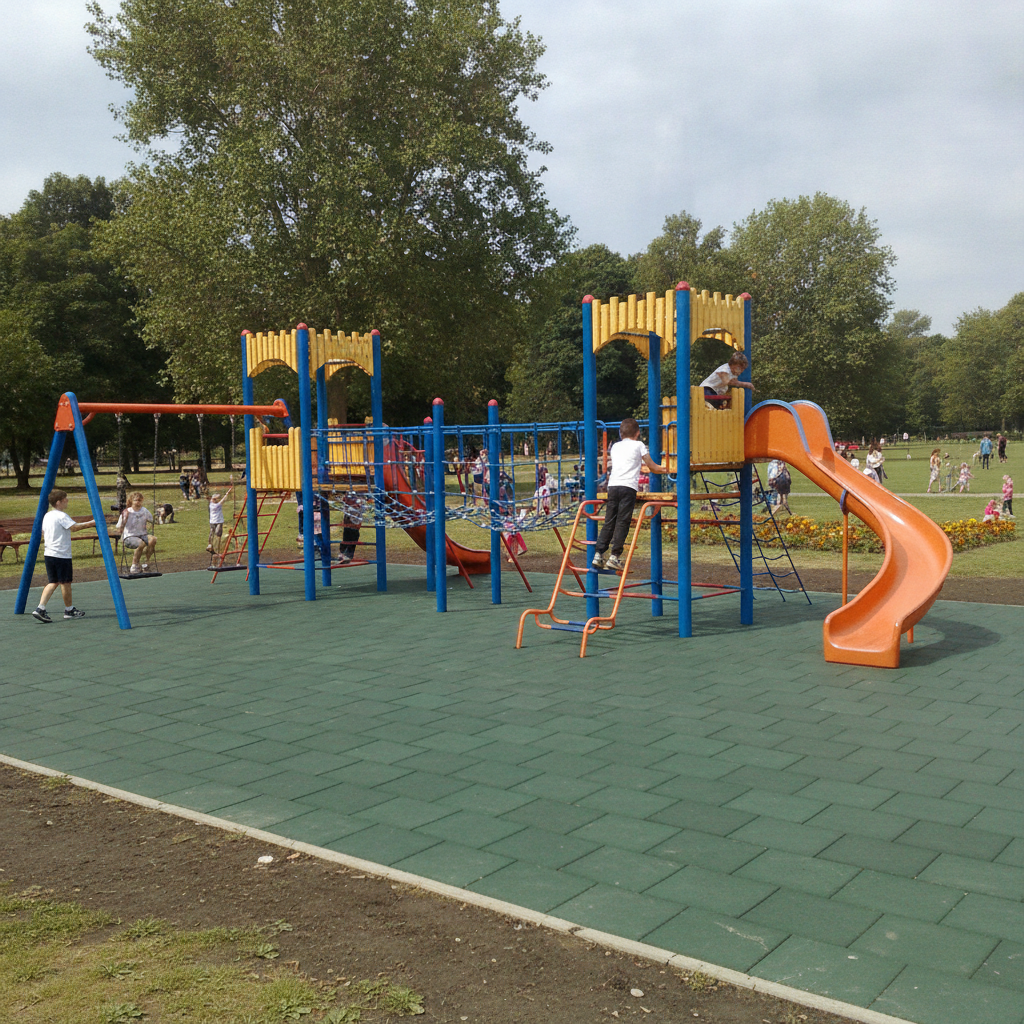

• Adventure Play Areas — The standard specification for tall multi-level climbing structures, zip wires, and rope courses
• Public Parks — Required by most local authority procurement specs for public play installations above 1.6m CFH
• Secondary Schools & Colleges — Appropriate for larger-scale outdoor gym equipment and senior play infrastructure
• Community & Leisure Centres — Used beneath outdoor fitness trails, trim trails, and activity stations
• Domestic High Climbing Frames — Recommended for any home climbing frame with a platform height above 1.6m

Coverage Calculator

• Each tile covers 0.25 m² (500mm × 500mm)
• You need 4 tiles per m²
• Formula: Area in m² × 4 = number of tiles

Example: A 5m × 6m adventure play zone = 30 m² = 120 tiles. Add 5–10% for perimeter cuts and future replacements.

EN1177 & EN1176 Compliance — What Specifiers Need to Know

EN1177 (Impact-Attenuating Playground Surfacing) defines the minimum performance criteria for playground flooring based on critical fall height. At 40mm, these tiles achieve EN1177 compliance for CFH up to 2.0m — covering the large majority of publicly installed play equipment in the UK.

EN1176 (Playground Equipment and Surfacing) governs the equipment design. Together, EN1177 + EN1176 compliance is the complete documentation package required for local authority approval, school sign-off, insurance purposes, and RoSPA playground inspections.

These tiles are manufactured and tested in Europe to both standards. Test documentation is available on request for professional procurement purposes.

Frequently Asked Questions

Q: Do 40mm tiles need adhesive?
A: No. These tiles connect using the included plastic dowel pins. The interlocking system holds firmly without adhesive, keeping installation simple and allowing future reconfiguration or removal if needed.

Q: What critical fall height do 40mm playground tiles cover?
A: 40mm tiles provide EN1177-compliant impact protection for equipment with a critical fall height up to 2.0m. This makes them the correct specification for the majority of adventure play structures, tall climbing frames, and higher public park equipment.

Q: How many tiles do I need per square metre?
A: Each tile covers 0.25 m² (500mm × 500mm). You need 4 tiles per m². Multiply your area in m² by 4, then add 5–10% for cuts and spares.

Q: Can I mix 40mm tiles with 30mm or 20mm tiles in the same area?
A: The tiles are the same footprint (500mm × 500mm) but different thicknesses, so the surface heights won't match — this creates a trip edge and is not recommended for safety reasons. Use one thickness consistently across any contiguous play zone.

Q: Are ramped edge pieces available?
A: Yes — ramped edge and corner pieces are available separately for a professional, compliant trip-free perimeter finish.

Q: What substrate is required?
A: Concrete, tarmac, or well-compacted hardcore. The surface must be firm, level, and clean. A 1–2% drainage fall is recommended to prevent water pooling.

Q: Can I use these indoors?
A: Yes — 40mm tiles are also used in indoor soft play areas, sports halls, and indoor adventure play facilities where maximum impact protection is required.

Q: Are these suitable for RoSPA or local authority inspections?
A: Yes. These tiles are EN1177 and EN1176-1 tested, which is the standard required for RoSPA inspections, local authority playground audits, and insurance documentation for public play areas.
