30mm Rubber Playground Tiles | 500mm × 500mm | EN1177 Certified | Interlocking

30mm Rubber Playground Tiles — Enhanced Impact Protection for School & Public Playgrounds

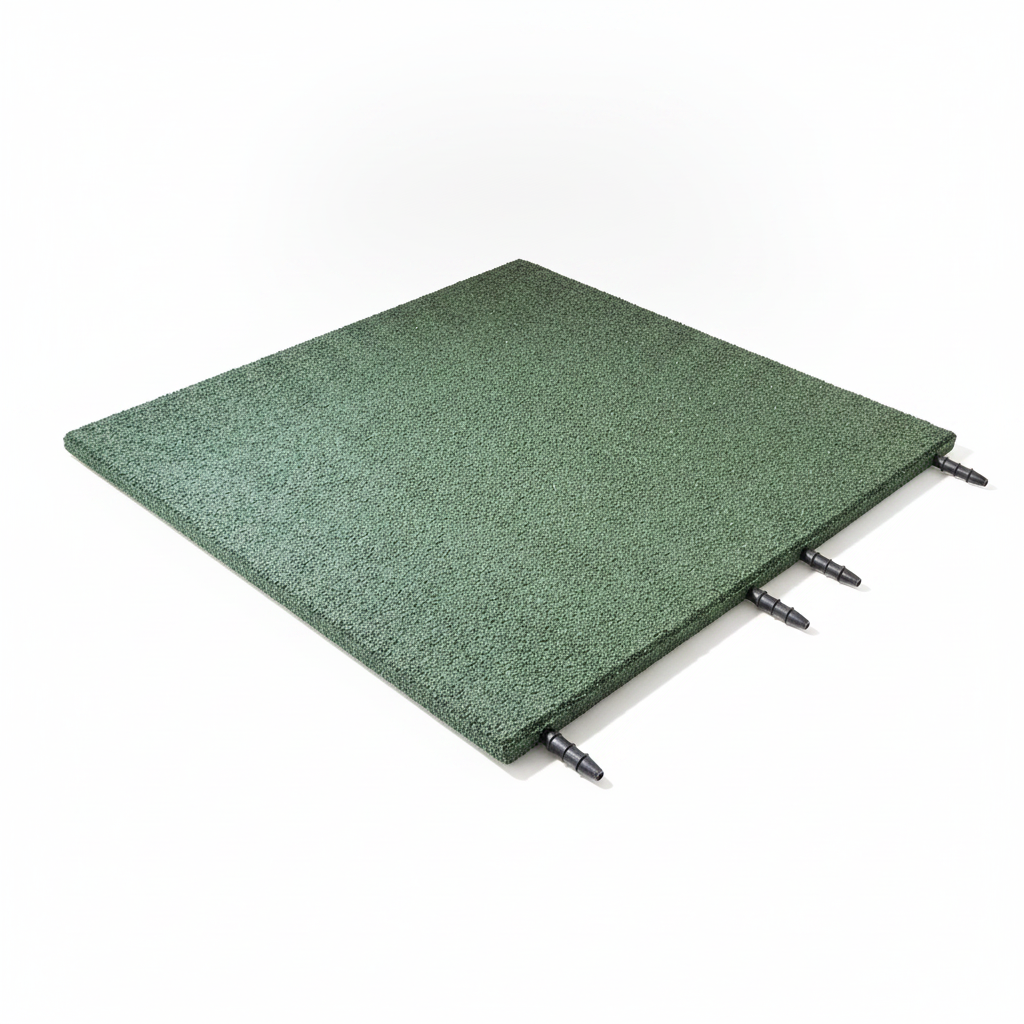

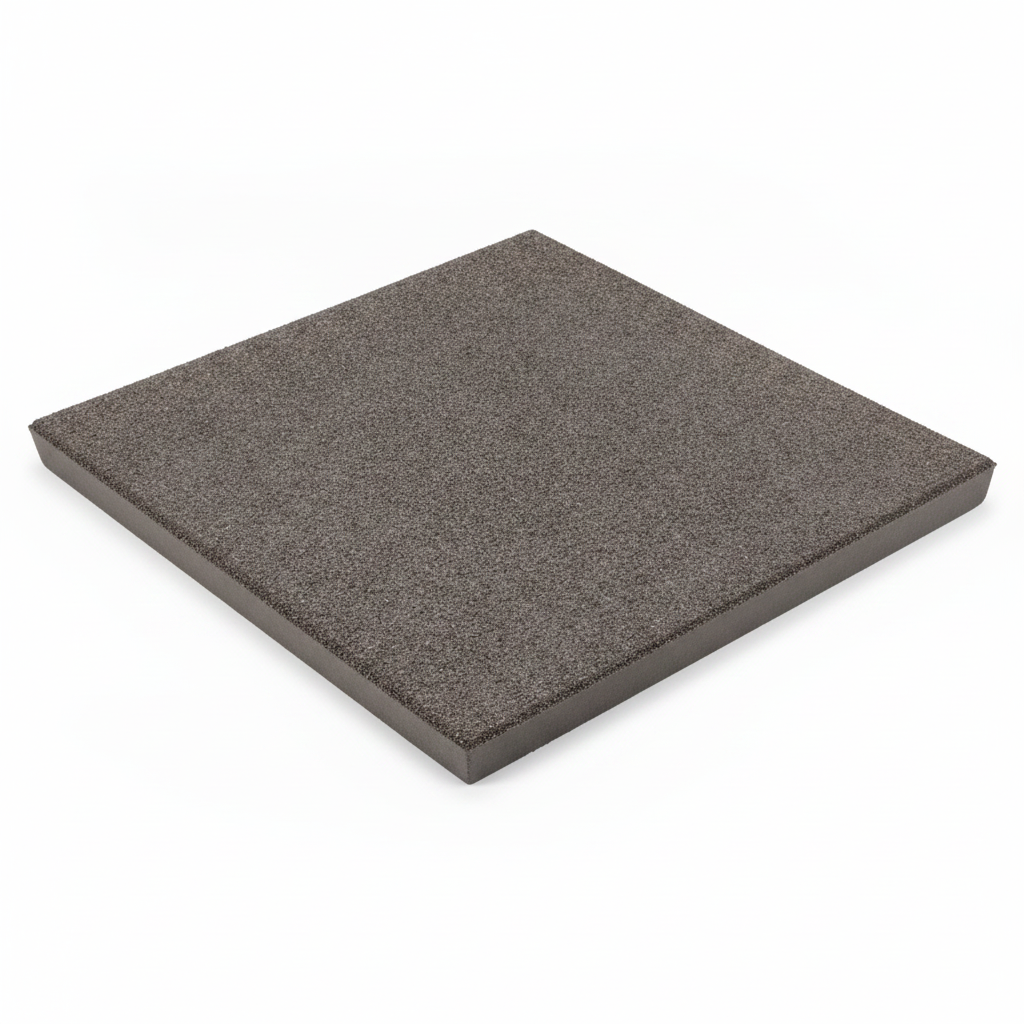

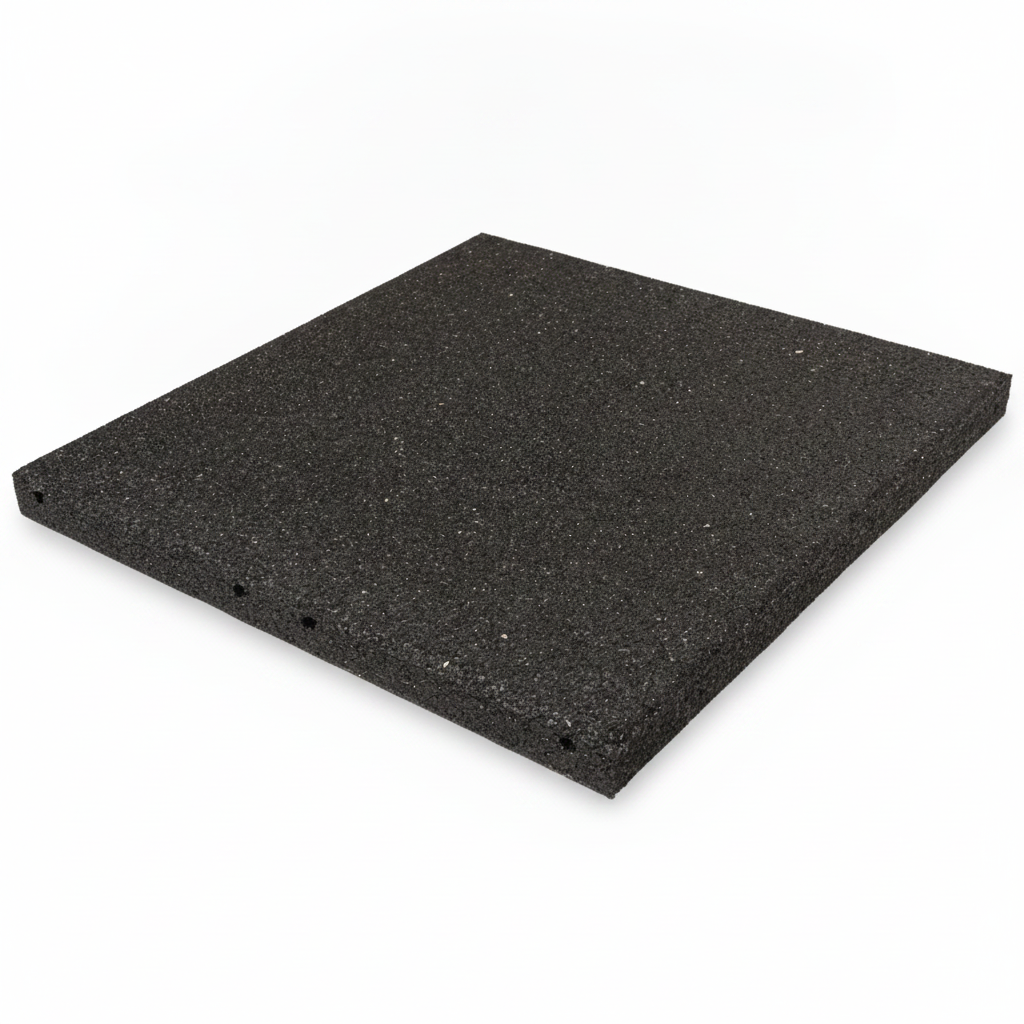

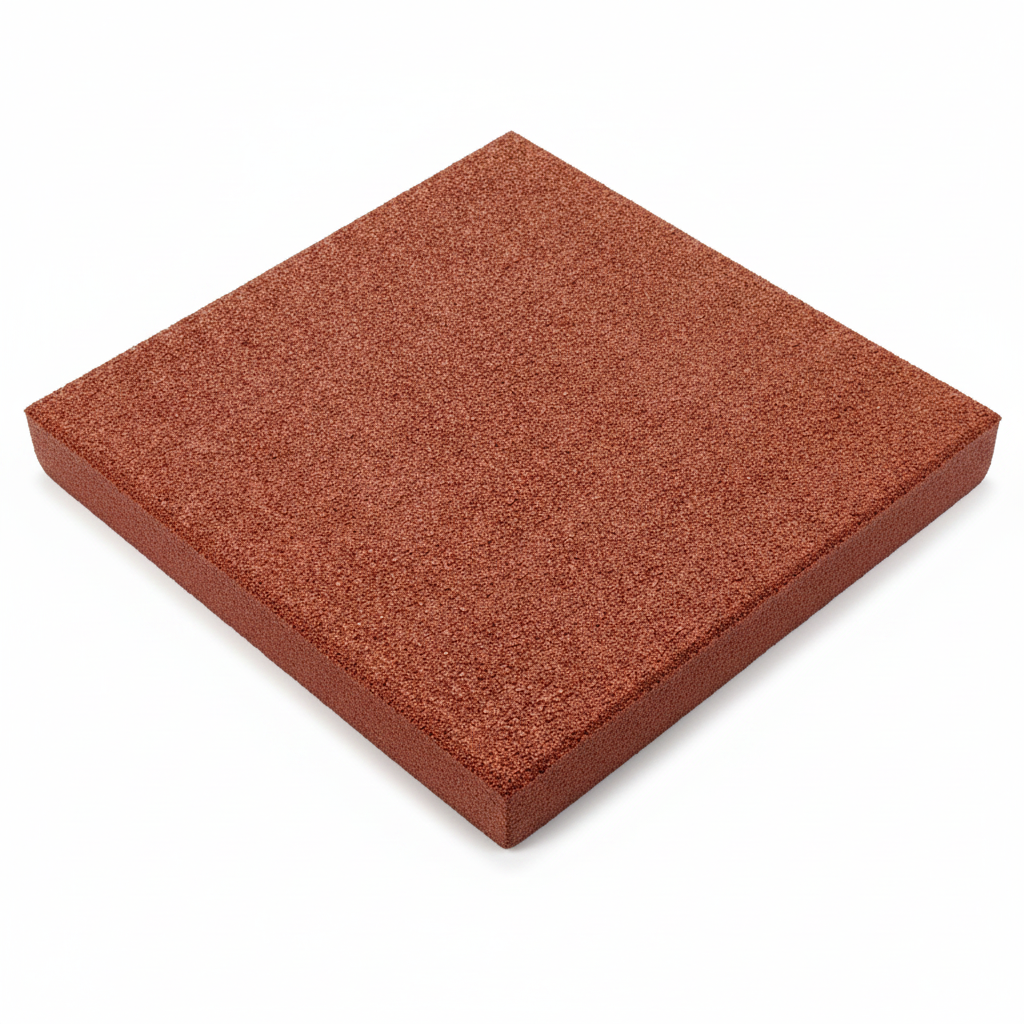

These 500mm × 500mm × 30mm recycled rubber playground tiles deliver a significant step up in fall protection over thinner options — EN1177 tested for critical fall heights up to 1.6m, making them the standard choice for primary school playgrounds, public parks, and climbing frames across the UK. Manufactured from high-density recycled rubber with interlocking dowel connectors, they install quickly without adhesive and hold firm underfoot in all weather conditions.

Product Specifications

Choosing the Right Thickness for Your Equipment

Critical Fall Height (CFH) is the mandatory calculation under EN1177 — it defines the minimum tile thickness required based on the tallest accessible point of your play equipment:

30mm is the most widely specified thickness for UK primary school playgrounds and complies with the majority of equipment found in school and nursery settings. For equipment with a fall height above 1.6m, see our 40mm playground tiles.

Step-by-Step Installation Guide

1. Prepare the substrate — Install onto concrete, tarmac, or compacted hardcore. Surface must be clean, dry, level and firm. A 1–2% drainage fall is ideal.
2. Dry-lay to plan — Lay tiles out without connecting to plan your layout and identify cuts before committing.
3. Connect with dowels — Insert the included plastic dowels into the connector holes along tile edges. Push firmly until flush — no tools, no adhesive needed.
4. Work row by row — Connect tiles in rows, working from one corner outward for a consistent, flat finish.
5. Cut to fit perimeter — Use a sharp Stanley knife or jigsaw for straight or curved cuts. Score deeply and snap, or cut through in one pass with a jigsaw.
6. Edge finishing — Ramped edge and corner pieces are available separately for a professional, trip-free perimeter finish.

Where These Tiles Are Used

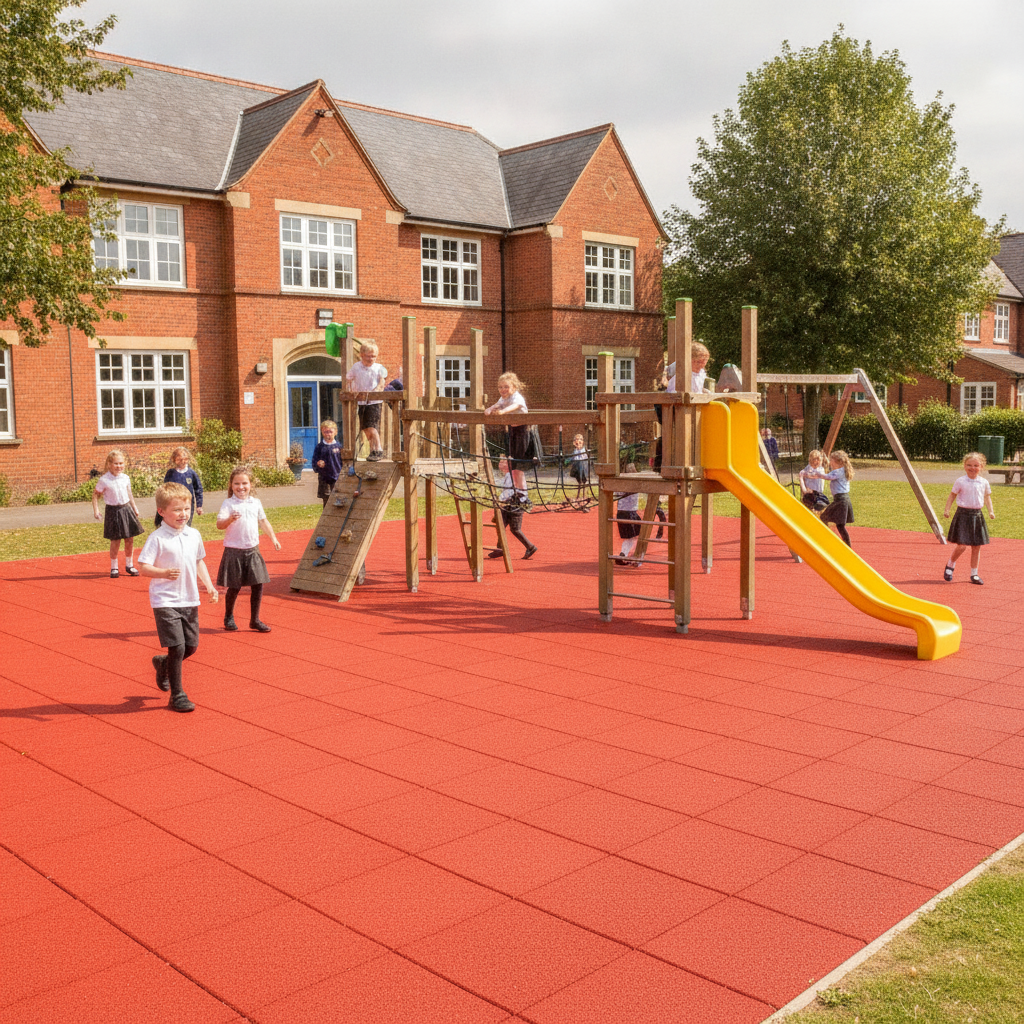

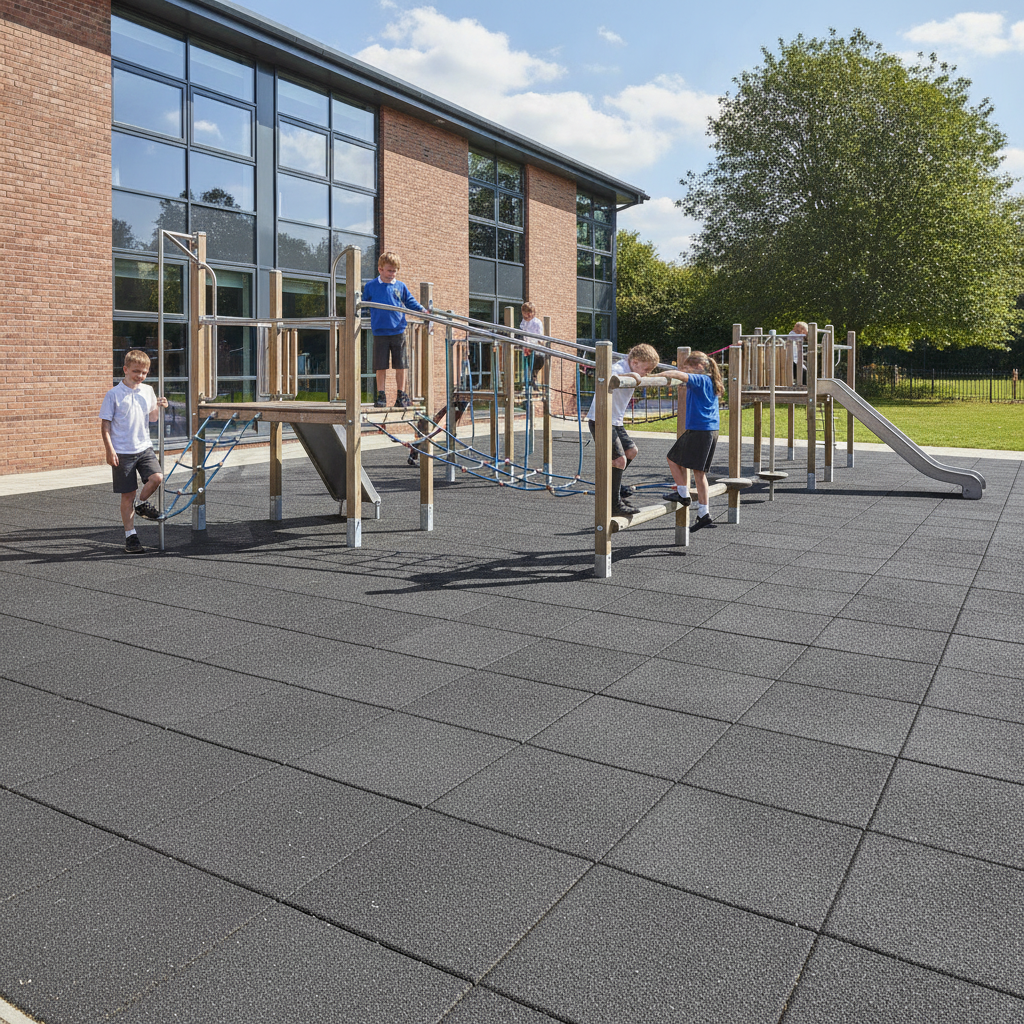

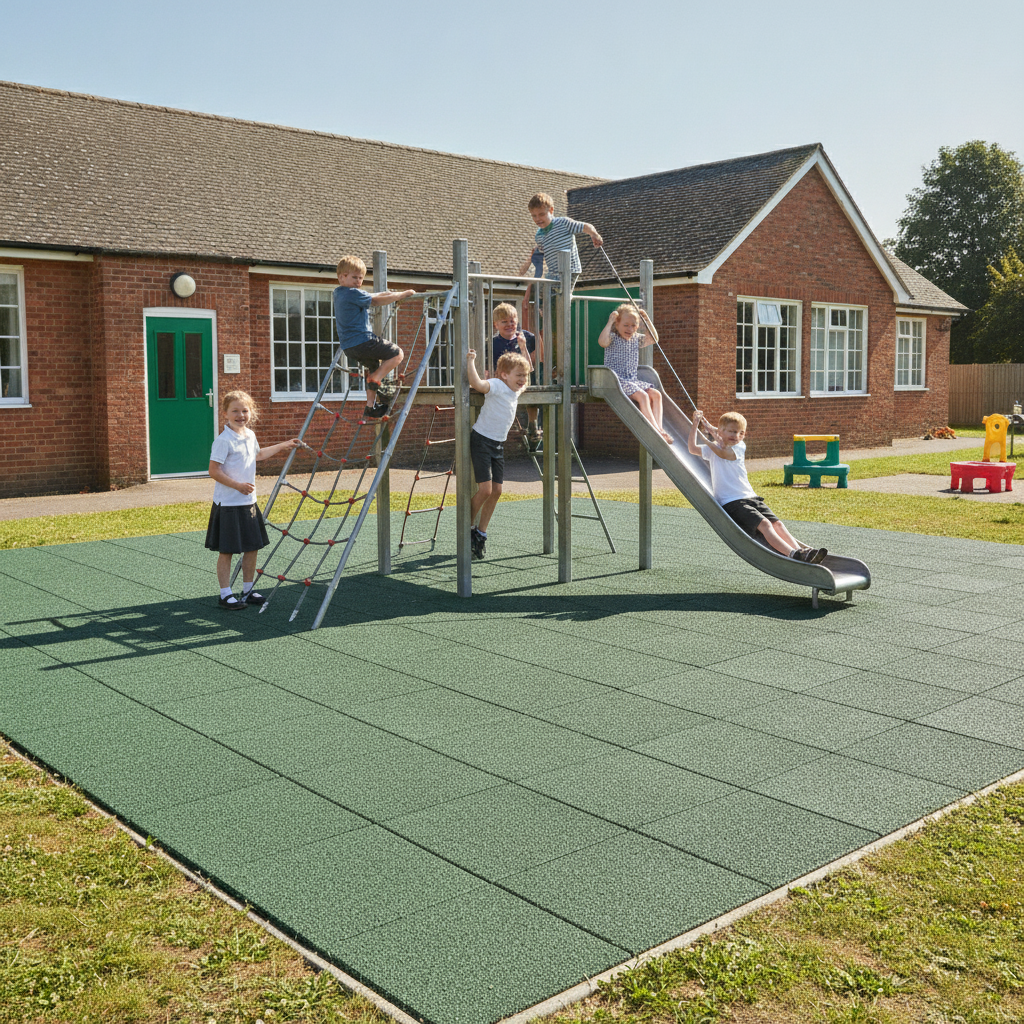

• Primary Schools — The go-to specification for UK school playgrounds; meets Ofsted and LA safety requirements for standard equipment
• Nurseries & Early Years Settings — Provides compliant fall protection under climbing frames and swing sets up to 1.5m

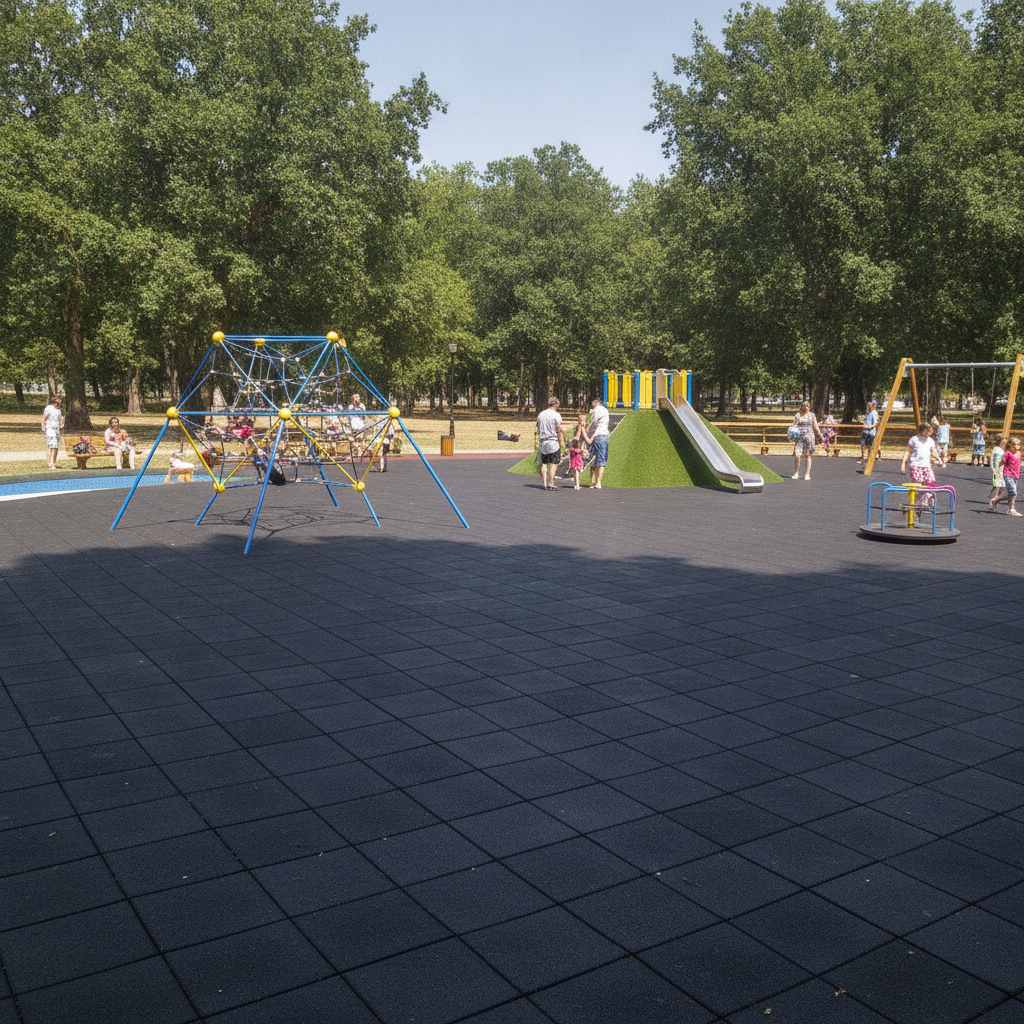

• Public Parks & Recreational Spaces — Durable enough for heavy public use, fully weatherproof for year-round installation
• Garden Play Areas — No adhesive means fully removable if needed; ideal for domestic climbing frames and swing sets
• Sports & Leisure Facilities — Used as a safety buffer around outdoor gym equipment, trim trails, and multi-use game areas

Coverage Calculator

• Each tile covers 0.25 m² (500mm × 500mm)
• You need 4 tiles per m²
• Formula: Area in m² × 4 = number of tiles

Example: A 4m × 5m playground zone = 20 m² = 80 tiles. Order 5–10% extra to allow for perimeter cuts and future replacements.

EN1177 & EN1176 Compliance — What It Means for You

EN1177 (Impact-Attenuating Playground Surfacing) specifies the shock-absorption performance required beneath playground equipment based on fall height. At 30mm, these tiles achieve compliance up to 1.6m CFH — covering the vast majority of UK school playground equipment.

EN1176 (Playground Equipment and Surfacing) governs the equipment itself. Together, these two standards form the complete compliance framework for UK school, nursery and public park installations. Tested compliance with both gives you the documentation required for school audits, local authority sign-off and insurance assessments.

Frequently Asked Questions

Q: Do these tiles need adhesive?
A: No — these tiles connect using the included plastic dowel pins that slot into holes along the tile edges. The interlocking system holds the surface firm without any adhesive, making installation and future removal straightforward.

Q: What critical fall height do 30mm tiles cover?
A: 30mm tiles provide EN1177-compliant impact protection for equipment with a critical fall height up to 1.6m. This covers the majority of UK primary school climbing frames, swings, and slides.

Q: How many tiles do I need per square metre?
A: Each tile is 500mm × 500mm = 0.25 m². You need 4 tiles per m². Multiply your area in m² by 4 for your total tile count, then add 5–10% for cuts.

Q: Are ramped edge pieces available?
A: Yes — ramped edge and corner pieces are available separately, providing a smooth, trip-free perimeter finish for a professional installation.

Q: Can I mix colours in one area?
A: Yes. All colour options share identical dimensions and connector positions, so Black, Green, Red and Grey tiles connect together perfectly — ideal for colour-zoned play areas or hopscotch-style patterns.

Q: Are these suitable for domestic garden use?
A: Fully. The interlocking (non-adhesive) installation means they can be laid and removed without damaging the substrate — ideal for garden climbing frames and swing sets.

Q: How do I clean and maintain the tiles?
A: Sweep regularly to remove debris and hose down with clean water as needed. Mild soapy water removes stubborn marks. No specialist maintenance required.

Q: What substrate do I need?
A: Concrete, tarmac, or well-compacted hardcore. The surface must be firm, level and free from loose material. A slight drainage fall (1–2%) prevents water pooling.
